低成本高精密电流感应贴片电阻CSN - 电流检测电阻
0805 / 1206 / 1210 / 2010 / 2512

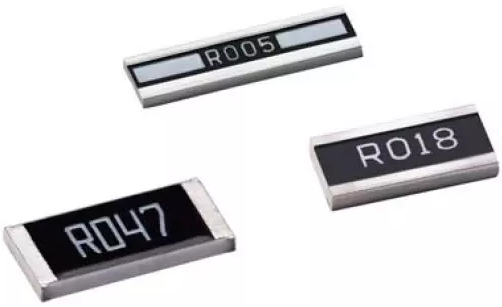

Current Sensing Chip Resistor - CSN SeriesFiles Download

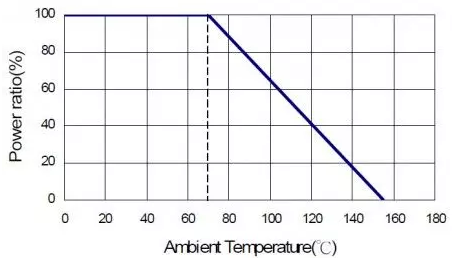

Derating Curve
Thick film Current sensing , tight tolerance of 1% ,sizes from 0805~2512, resistance range 39m~1R.
High reliable current detecting resistors.
Features
-
Resistance values from 39m to 1 ohm
-
High purity alumina substrate for high power dissipation
-
RoHS Compliance.
Applications
-
Power Management Applications
-
Switching Power Supply
-
Over Current Protection in Audio Applications
-
Voltage Regulation Module (VRM)
-
DC-DC Converter, Battery Pack, Charger, Adaptor
-
Disk Driver

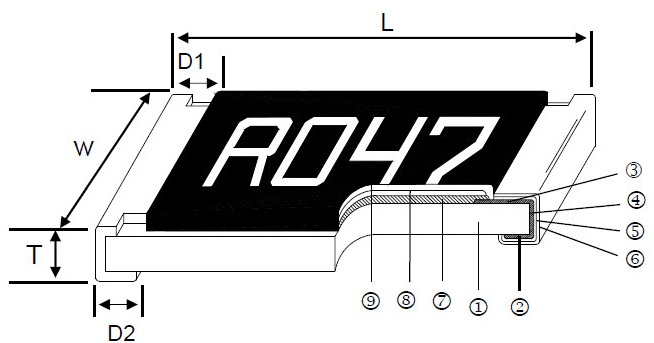

Construction
Part Numbering
Standard Electrical Specifications
|
Item Type |
Power Rating at 70°C |
Operating Temp. Range |
Max. Operating Current |
Resistance Range (mΩ) |
TCR (PPM/°C) |
||
|---|---|---|---|---|---|---|---|
| ±1% | ±2% | ±5% | |||||
| CS01 (0201) | 1/20W | -55 ~ +155°C | 0.70A |
100 - 147 150 - 500 510 - 1000 |
±1000 ±600 ±300 |
||
| CS02 (0402) | 1/16W | 1.11A |
50 - 100 102 - 500 510 - 1000 |
±400 ±300 ±200 |
|||
| CS03 (0603) | 1/10W | 2.23A |
20 - 50 51 - 100 102 - 300 301 - 1000 |
±600 ±400 ±300 ±200 |
|||
| CS05 (0805) | 1/8W | 2.50A |
20 - 50 51 - 100 102 -196 200 - 1000 |
±600 ±400 ±300 ±200 |
|||
| CS06 (1206) | 1/4W | 5.00A |
10 - 20 21 - 50 51 - 91 100 - 1000 |
±600 ±400 ±300 ±200 |
|||
| CS13 (1210) | 1/2W | 7.07A | |||||
| CS10 (2010) | 3/4W | 8.66A | |||||
| CS12 (2512) | 1W | 10.0A | |||||
| CS25 (1225) | 3W | 31.6A |
3 - 5 6 - 20 21 - 30 33 - 8000 |
±300 ±200 ±150 ±100 |
|||
| CS37 (3720) | 1W | 10.0A |
10 - 18 20 - 500 |
±300 ±150 |
|||
| CS75 (7520) | 2W | 44.7A | － | 1 - 4 | ±300 | ||
|
5 - 10 11 - 350 |
±200 ±150 |
||||||
| CS62 (0612) | 1W | 10.0A |
10 - 27 30 - 91 100 – 499 500 - 1000 |
±600 ±300 ±200 ±100 |
|||
